Simulation of a 1D Super-sonic nozzle flow simulation using Macormack Method

Simulation of a 1D Super-sonic nozzle flow simulation using Macormack Method In this project, I will be solving a 3D nozzle flow simulation which has been converted to a 1D nozzle, disregarding any change in quantities in the y and z directions.     This type of flow is called quasi-one-dimensional flow. This…

    • Dushyanth Srinivasan

      updated on 27 Feb 2022

    Simulation of a 1D Super-sonic nozzle flow simulation using Macormack Method

    In this project, I will be solving a 3D nozzle flow simulation which has been converted to a 1D nozzle, disregarding any change in quantities in the y and z directions.





    This type of flow is called quasi-one-dimensional flow.

    This flow is solved using the governing equations of continuity, momentum and energy as follows:

    Continuity: ρ1⋅V1⋅A1=ρ2⋅V2⋅A2ρ1⋅V1⋅A1=ρ2⋅V2⋅A2

    Momentum: ρ1⋅A1+ρ1⋅V21⋅A1+∫A2A1(pdA)=ρ2⋅A2+ρ2⋅V22⋅A2ρ1⋅A1+ρ1⋅V21⋅A1+∫A1A2(pdA)=ρ2⋅A2+ρ2⋅V22⋅A2

    Energy: h1+V212=h2+V222h1+V212=h2+V222

    These equations are solved by numerical methods in both conservative and non-conservative form.

    1. Non-Conservative Form

    The governing equations for the non-conservative form are as follows:

    Continnuity:∂ρ'∂t'=−ρ'∂V'∂x'−ρ'V'∂lnA'∂x'−V'∂ρ'∂x'∂ρ′∂t′=-ρ′∂V′∂x′-ρ′V′∂lnA′∂x′-V′∂ρ′∂x′

    Momentum: ∂V'∂t'=−V'∂V'∂x'−1γ(∂T'∂x'+T'ρ'∂ρ'∂x')∂V′∂t′=-V′∂V′∂x′-1γ(∂T′∂x′+T′ρ′∂ρ′∂x′)

    Energy: ∂T'∂t'=−V'∂T'∂x'−(γ−1)T'(∂V'∂x'+V'∂lnA'∂x')∂T′∂t′=-V′∂T′∂x′-(γ-1)T′(∂V′∂x′+V′∂lnA′∂x′)

    where the ' denotes that the values of all values are normalised. That is, the values are divided by a respective standard value to make the equations non-dimensionless.

    where T'=TT0,ρ'=ρρ0,x'=xL,V'=Va0,A'=AA0,t'=tL/(a0)T′=TT0,ρ′=ρρ0,x′=xL,V′=Va0,A′=AA0,t′=tL/(a0)

    These equations are solved using the Macormack Method, which uses predictor and corrector steps to obtain a 2nd order solution.

    The predictor method involves solving the equations in forward differencing method, as shown below:

    An intermediate solution is calculated from the predictor values

    Next is the corrector step, in which the updated predicted values are backward differeced to obtain a second order solution

    The corrector values and predictor values are finally averaged in this step, which gives a solution which is 2nd order accurate

    The averaged value is used to calculate final primitive values for that timestep.

    This process is repeated for all timesteps or till steady state is obtained.

    Results of Non-Conversative Form

    1. Steady-state distribution of primitive variables inside the nozzle

    This graph shows distribution of velocity, pressure, temperature and density inside the nozzle at the final timestep (1400 in this case). We can notice that the velocity crosses 1 at x = 1.5 (throat of nozzle), the velocity transitions from subsonic to super sonic at the throat of the nozzle. The velocity gradually increases and plateau-s after a while the other values decrease gradually and plateau-s. Boundary conditions and assumptions are satisfied (velocity at inlet is 0, pressure at outlet is 0, pressure at inlet is maximum, etc.)

    2. Time-wise variation of the primitive variables

    This shows the variation of velocity, temperature, density and pressure at the throat of the nozzle for all timesteps (till 1400 in this case), we can see how the solution first struggles to converge by deviating upon the true value and then finally converges at around the ~600th timestep. This devitation is expected as the nozzle requires some time to acheive steady state.

    3. Variation of Mass flow rate distribution inside the nozzle at different time steps during the time-marching process

    This plot shows the normalised mass flow rate across the nozzle at different timesteps, in multiples of 200. We can notice that during the earlier timesteps, the mass flow rate is quite far from the final solution, this is expected as it takes some time for steady state to occur in a system. The difference between mass flow rate at a specific timestep and final timestep decreases as the solution slowly progesses towards steady state.

    Code for Non-conservative Form



    % this function takes in x,n and nt as parameters and returns the mass
% profile across the nozzle during the final timestep
function [mass] = non_conservative (x,n,nt)
    dx = x(2)-x(1);

    % initial profiles for primitive variables and gamma
    rho = 1 - 0.3146*x;
    t = 1 - 0.2314*x;
    v = (0.1+1.09*x).*t.^0.5;
    gamma = 1.4;

    % calculating area
    a = 1+2.2*(x-1.5).^2;
    % finding a safe value of dt by assuming courant number as 0.5 so as to
    % have a stable solution
    dt = min(0.5*dx./(sqrt(t)+v));

    % time loop
    for k = 1:nt
        % creating copies of primitive variables
        rho_old = rho;
        v_old = v;
        t_old = t;

        % predictor loop
        for j = 2:n-1
            % instead of writing a huge expression we are splitting it
            dvdx = (v(j+1) - v(j))/dx;
            drhodx = (rho(j+1)-rho(j))/dx;
            dtdx = (t(j+1)-t(j))/dx;
            dloga_dx = (log(a(j+1)) - log(a(j)))/dx;

            % continuity equation
            drhodt_p(j) = -rho(j) * dvdx - rho(j)*v(j)*dloga_dx - v(j)*drhodx;

            % momentum equation
            dvdt_p(j) = - v(j)*dvdx - (1/gamma) * (dtdx + (t(j)*drhodx/rho(j)));

            % energy equation
            dtdt_p(j) = -v(j)*dtdx - (gamma - 1)*t(j)*(dvdx + v(j) * dloga_dx);

            % solution update
            rho(j) = rho(j) + drhodt_p(j)* dt;
            v(j) = v(j) + dvdt_p(j)* dt;
            t(j) = t(j) + dtdt_p(j)* dt;

        end

        % corrector loop
        for j = 2:n-1
            % instead of writing a huge expression we are splitting it
            dvdx = (v(j) - v(j-1))/dx;
            drhodx = (rho(j)-rho(j-1))/dx;
            dtdx = (t(j)-t(j-1))/dx;
            dloga_dx = (log(a(j)) - log(a(j-1)))/dx;

            % continuity equation
            drhodt_c(j) = -rho(j) * dvdx - rho(j)*v(j)*dloga_dx - v(j)*drhodx;

            % momentum equation
            dvdt_c(j) = - v(j)*dvdx - (1/gamma) * (dtdx + (t(j)*drhodx/rho(j)));

            % energy equation
            dtdt_c(j) = -v(j)*dtdx - (gamma - 1)*t(j)*(dvdx + v(j) * dloga_dx);
        end

        % computing the mean of predictor and corrector methods
        drhodt = 0.5 *(drhodt_p + drhodt_c);
        dvdt = 0.5 *(dvdt_p + dvdt_c);
        dtdt = 0.5 * (dtdt_p + dtdt_c);

        % final solution update
        for i = 2:n-1
            rho(i) = rho_old(i) + drhodt(i)* dt;
            v(i) = v_old(i) + dvdt(i)*dt;
            t(i) = t_old(i) + dtdt(i)*dt;
        end

        % boundary conditions
        % inlet
        v(1) = 2 * v(2) - v (3);

        % outlet
        v(n) = 2*v(n-1) - v(n-2);
        rho(n) = 2*rho(n-1) - rho(n-2);
        t(n) = 2*t(n-1) - t(n-2);

        % calculating pressure across the nozzle
        p = rho.*t;

        % calculating values for the plots at the throat
        throat = find(a==1);
        rho_throat (k) = rho(throat);
        t_throat (k) = t(throat);
        v_throat (k) = v(throat);
        p_throat (k) = p(throat);

        % calculating mass across the nozzle
        mass = rho.*a.*v;

        % plotting the mass at specific timesteps
        if rem(k,200) == 0
            figure(4)
            plot(x,mass)
            hold on
        end

    end
    % adding further details to the plot above
    figure (4)
    grid on
    grid minor
    lgd = legend('200','400','600','800','1000','1200','1400');
    title('Non-Convervative Form','Variation of Normalised Massflow rate inside the Nozzle')
    title(lgd,'Timestep')

    % plot to find time-wise variation of primitive variables at the throat
    figure (5)
    subplot (4,1,1)
    plot([1:nt],v_throat,'r')
    hold on
    title('Time-wise variation of Velocity at Throat')

    subplot (4,1,2)
    plot([1:nt],t_throat,'r')
    hold on
    title('Time-wise variation of Temperature at Throate')

    subplot (4,1,3)
    plot([1:nt],rho_throat,'r')
    hold on
    title('Time-wise variation of Density at Throat')

    subplot (4,1,4)
    plot([1:nt],p_throat,'r')
    title('Time-wise variation of Pressure at Throat')

    sgtitle('Non-Conservative Form')

    % plot to find distribution of primitive variables across the nozzle
    figure (6)
    subplot (4,1,1)
    plot(x,v,'b-o')
    grid on
    grid minor
    hold on
    title('Velocity inside the Nozzle')

    subplot (4,1,2)
    plot(x,t,'b-o')
    grid on
    grid minor
    hold on
    title('Temperature inside the Nozzle')

    subplot (4,1,3)
    plot(x,rho,'b-o')
    grid on
    grid minor
    hold on
    title('Density inside the Nozzle')

    subplot (4,1,4)
    plot(x,p,'b-o')
    grid on
    grid minor
    title('Pressure inside the Nozzle')

    sgtitle('Non-Conservative Form')

    % printing values of primitive variables at throat during the last
    % timestep for grid independence analysis
    disp('Non-Conservative Form')
    disp('Density')
    rho_throat(nt)
    disp('Temperature')
    t_throat (nt)
    disp('Pressure')
    p_throat (nt)
    disp('Velocity')
    v_throat (nt)
    disp('Mass')
    mass(throat)
    disp('Mach Number')
    v_throat (nt)/(sqrt(t_throat (nt)))
end

    2. Conservative Form

    The governing equations for the non-conservative form are as follows:

    Continuity: ∂(ρ'A')∂t'+∂(ρ'A'V')∂x'=0∂(ρ′A′)∂t′+∂(ρ′A′V′)∂x′=0

    Momentum: ∂(ρ'A'V')∂t'+∂(ρ'A'V'2−(1/γ)p'A')∂x'=1γp'∂A'∂x'∂(ρ′A′V′)∂t′+∂(ρ′A′V′2-(1/γ)p′A′)∂x′=1γp′∂A′∂x′

    Energy: ∂[ρ'(e'γ−1+γ2V'2A')]∂t'+∂[ρ'(e'γ−1+γ2V'2+p'A'V')]∂x'=0∂[ρ′(e′γ-1+γ2V′2A′)]∂t′+∂[ρ′(e′γ-1+γ2V′2+p′A′V′)]∂x′=0

    Since it is not feasible to solve such a complex solution we use subsitute some terms with solution vectors (U), flux vectors (F) and J2

    where, U1= (ρ'A'),F1= (ρ'A'V'),U2=(ρ'A'V'),F2=(ρ'A'V'2−(1/γ)p'A'),J2=1γp'∂A'∂x',U1= (ρ′A′),F1= (ρ′A′V′),U2=(ρ′A′V′),F2=(ρ′A′V′2-(1/γ)p′A′),J2=1γp′∂A′∂x′,

    U3=ρ'(e'γ−1+γ2V'2A')andF3=ρ'(e'γ−1+γ2V'2+p'A'V')U3=ρ′(e′γ-1+γ2V′2A′)andF3=ρ′(e′γ-1+γ2V′2+p′A′V′)

    where the ' denotes that the values of all values are normalised. That is, the values are divided by a respective standard value to make the equations non-dimensionless.

    where T'=TT0,ρ'=ρρ0,x'=xL,V'=Va0,A'=AA0,t'=tL/(a0)T′=TT0,ρ′=ρρ0,x′=xL,V′=Va0,A′=AA0,t′=tL/(a0)

    This process simplyfies the conservation equations, and primitive values can be easily found

    ρ'=U1A',V'=U2U1,p'=ρ'⋅T',T'=(γ−1)⋅(U3U2−γ2V'2)ρ′=U1A′,V′=U2U1,p′=ρ′⋅T′,T′=(γ-1)⋅(U3U2-γ2V′2)

    This process provides the following equations which need to be solved now,

    Now the predictor step values are calculated, before that the flux variables are initialised

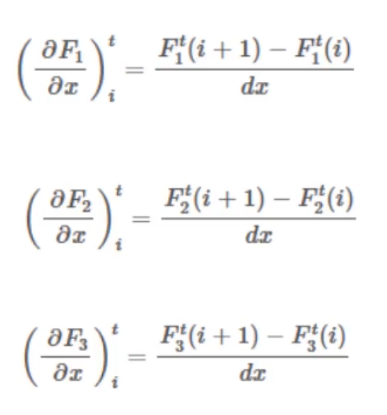

    The derivative of flux values are calculated using forward differencing, as follows

    The derivatives of flux values are used to find the solution vector, and predictor values of the solution are calculated

    Now on to the corrector step. In this step the derivatives of the flux values are calculated using backward differencing,

    The derivatives of flux values are used to calculate the solution vectors as follows:

    Then, the corrector and predictor values are averaged together to form the final 2nd order partial derivative of the solution vectors.

    This final partial derivative is used to calculate the solution variables for that timestep.

    And the solution vector is reverse subsitituted, to find the values of the primitive values for that specific timestep

    This process is repeated for all timesteps or till steady state is obtained.

    Results of Conversative Form

    1. Steady-state distribution of primitive variables inside the nozzle

    This graph shows distribution of velocity, pressure, temperature and density inside the nozzle at the final timestep (1400 in this case). We can notice that the velocity crosses 1 at x = 1.5 (throat of nozzle), the velocity transitions from subsonic to super sonic at the throat of the nozzle. The velocity gradually increases and plateau-s after a while the other values decrease gradually and plateau-s. Boundary conditions and assumptions are satisfied (velocity at inlet is 0, pressure at outlet is 0, pressure at inlet is maximum, etc.)

    2. Time-wise variation of the primitive variables

    This shows the variation of velocity, temperature, density and pressure at the throat of the nozzle for all timesteps (till 1400 in this case), we can see how the solution first struggles to converge by deviating upon the true value and then finally converges at around the ~600th timestep. This devitation is expected as the nozzle requires some time to acheive steady state.

    3. Variation of Mass flow rate distribution inside the nozzle at different time steps during the time-marching process

    This plot shows the normalised mass flow rate across the nozzle at different timesteps, in multiples of 200. We can notice that during the earlier timesteps, the mass flow rate is quite far from the final solution, this is expected as it takes some time for steady state to occur in a system. The difference between mass flow rate at a specific timestep and final timestep decreases as the solution slowly progesses towards steady state.

    Code for Conservative Form



    % this function takes in x,n and nt as parameters and returns the mass
% profile across the nozzle during the final timestep
function [mass] = conservative (x,n,nt)
    dx = x(2)-x(1);

    % initial profiles for primitive variables
    % for 0 <=x <= 0.5
    rho = ones(1,n);
    t = ones(1,n);

    % for 0.5<= x <= 1.5
    for l= find(x==0.5):find(x==1.5)
        rho(l) = 1 - 0.366*(x(l)-0.5);
        t(l) = 1 - 0.167*(x(l)-0.5);
    end

    % for 1.5 <= x <= 3.5
    for l=find(x==1.5):find(x==3)
        rho(l) = 0.634 - 0.3879*(x(l)-1.5);
        t(l) = 0.833 - 0.3507*(x(l)-1.5);
    end

    % calculating area, gamma and velocity
    a = 1+2.2*(x-1.5).^2;
    v = 0.59 ./ (rho .* a);
    gamma = 1.4;

    % initialising solution variables

    u1 = rho.*a;
    u2 = rho.*a.*v;
    u3 = a.*rho.*( (t./(gamma - 1)) + (0.5 * gamma * v.^2) ) ;

    % finding a safe value of dt by assuming courant number as 0.5 so as to
    % have a stable solution
    dt = min(0.5*dx./(sqrt(t)+v));

    % time loop
    for k = 1:nt

        % intialising flux variables
        f1 = u2;
        f2 = (u2.^2./u1) + ((gamma - 1)/(gamma)) * (u3 - (0.5*gamma*u2.^2./u1));
        f3 = (gamma * u2.*u3./u1) - (0.5*gamma*(gamma-1)*u2.^3./(u1.^2));

        % creating copies of solution vectors
        u1_old = u1;
        u2_old = u2;
        u3_old = u3;

        % predictor loop
        for j = 2:n-1

            j2(j) = (1/gamma) * rho(j) * t(j) * ( (a(j+1) - a(j))/dx);
            df1dx(j) = (f1(j+1) - f1(j))/dx;
            df2dx(j) = (f2(j+1) - f2(j))/dx;
            df3dx(j) = (f3(j+1) - f3(j))/dx;

            du1dt_p(j) = -1 * df1dx(j);
            du2dt_p(j) = -1 * df2dx(j) + j2(j);
            du3dt_p(j) = -1 * df3dx(j);

            % solution vector update
            u1(j) = u1(j) + du1dt_p(j) * dt;
            u2(j) = u2(j) + du2dt_p(j) * dt;
            u3(j) = u3(j) + du3dt_p(j) * dt;
        end

        % calculating flux values for predictor updated solution vectors
        f1 = u2;
        f2 = (u2.^2./u1) + ((gamma - 1)/(gamma)) * (u3 - (0.5*gamma*u2.^2./u1));
        f3 = (gamma * u2.*u3./u1) - (0.5*gamma*(gamma-1)*u2.^3./(u1.^2));

        rho = u1./a;
        v = u2./u1;
        t = (gamma - 1)*( u3./u1 - gamma*0.5*v.^2);

        % corrector loop
        for j = 2:n-1

            j2(j) = (1/gamma) * rho(j) * t(j) * ((a(j) - a(j-1))/dx);
            df1dx(j) = (f1(j) - f1(j-1))/dx;
            df2dx(j) = (f2(j) - f2(j-1))/dx;
            df3dx(j) = (f3(j) - f3(j-1))/dx;

            du1dt_c(j) = -1 * df1dx(j);
            du2dt_c(j) = -1 * df2dx(j) + j2(j);
            du3dt_c(j) = -1 * df3dx(j);

        end

        % computing the mean of predictor and corrector methods
        du1dt= 0.5*(du1dt_p + du1dt_c);
        du2dt= 0.5*(du2dt_p + du2dt_c);
        du3dt= 0.5*(du3dt_p + du3dt_c);

        % final solution vector update
        for i = 2:n-1
            u1(i) = u1_old(i) + du1dt(i)*dt;
            u2(i) = u2_old(i) + du2dt(i)*dt;
            u3(i) = u3_old(i) + du3dt(i)*dt;
        end

        % boundary conditions
        % inlet
        u1(1) = a(1);
        u2(1) = 2*u2(2) - u2(3);
        u3(1) = u1(1).* (t(1)/(gamma-1) + 0.5*gamma*v(1)^2);

        % outlet
        u1(n) = 2*u1(n-1) - u1(n-2);
        u2(n) = 2*u2(n-1) - u2(n-2);
        u3(n) = 2*u3(n-1) - u3(n-2);

        % finding primitive values from solution vectors
        rho = u1./a;
        v = u2./u1;
        t = (gamma - 1)*( u3./u1 - gamma*0.5*v.^2);
        p = rho.*t;

        % calculating values for the plots at the throat
        throat = find(a==1);
        rho_throat (k) = rho(throat);
        t_throat (k) = t(throat);
        v_throat (k) = v(throat);
        p_throat (k) = p(throat);

        % calculating mass across the nozzle
        mass = rho.*a.*v;

        % plotting the mass at specific timesteps
        if rem(k,200) == 0
            figure(1)
            plot(x,mass)
            hold on
        end
    end
    % adding further details to the plot above
    figure (1)
    grid on
    grid minor
    lgd = legend('200','400','600','800','1000','1200','1400');
    title('Convervative Form', 'Variation of Normalised Massflow rate inside the Nozzle')
    title(lgd,'Timestep')

    % plot to find time-wise variation of primitive variables at the throat
    figure (2)
    subplot (4,1,1)
    plot([1:nt],v_throat,'r')
    hold on
    title('Time-wise variation of Velocity')

    subplot (4,1,2)
    plot([1:nt],t_throat,'r')
    hold on
    title('Time-wise variation of Temperature')

    subplot (4,1,3)
    plot([1:nt],rho_throat,'r')
    hold on
    title('Time-wise variation of Density')

    subplot (4,1,4)
    plot([1:nt],p_throat,'r')
    title('Time-wise variation of Pressure')

    sgtitle('Conservative Form')

    % plot to find distribution of primitive variables across the nozzle
    figure (3)
    subplot (4,1,1)
    plot(x,v,'b-o')
    grid on
    grid minor
    hold on
    title('Velocity inside the Nozzle')


    subplot (4,1,2)
    plot(x,t,'b-o')
    grid on
    grid minor
    hold on
    title('Temperature inside the Nozzle')

    subplot (4,1,3)
    plot(x,rho,'b-o')
    grid on
    grid minor
    hold on
    title('Density inside the Nozzle')

    subplot (4,1,4)
    plot(x,p,'b-o')
    grid on
    grid minor
    title('Pressure inside the Nozzle')

    sgtitle('Conservative Form')

    % printing values of primitive variables at throat during the last
    % timestep for grid independence analysis
    disp('Conservative Form')
    disp('Density')
    rho_throat(nt)
    disp('Temperature')
    t_throat (nt)
    disp('Pressure')
    p_throat (nt)
    disp('Velocity')
    v_throat (nt)
    disp('Mass')
    mass(throat)
    disp('Mach Number')
    v_throat (nt)/(sqrt(t_throat (nt)))

end



    Comparison of Normalized mass flow rate distributions of both forms

    This plot shows the normalised mass flow rate across the nozzle at the final timestep (1400 in this case) when the solution has attained steady state for both Conservative and Non-Conservative forms. We can notice that the conservative form is more smooth, while the non-conservative form seems jagged. Keep in mind, that the y-axis scale is very small, so small differences in mass flow rate appear more magnified in this case. The jagged-ness could be explained by assuming the solution is about to become unstable for the non-conservative form.



    Main Program Code

    clear all
close all
clc

% inputs
n = 31;
x = linspace(0,3,n);
nt = 1400;

% these functions takes in x,n and nt as parameters and returns the mass
% profile across the nozzle during the final timestep

mass_c = conservative (x,n,nt);

mass_nc = non_conservative (x,n,nt);

% to plot variation of mass across nozzle for both forms
figure(7)
plot(x,mass_c)
hold on
plot(x,mass_nc)
legend('Conversative Form','Non-Conservative Form')
title ('Comparison of Normalized Mass Flow rate')



    Grid Independence Test

    In order to check if the solution is independent of the number of grid points used, a grid independence test was performed to ensure the solution's tenability. The number of grid divisions were increased to 60 (increasing grid points to 61) and the result are below:



    Number of Gridpoints ρ'ρ′ T'T′ p'p′ V'V′ m'm′ MM
    Case 1: 31 points 0.6387 0.8365 0.5342 0.9140 0.5838 0.9994
    Case 2: 61 points 0.6377 0.8354 0.5327 0.9138 0.5827 0.9998
    Analytical Solution* 0.634 0.833 0.528 0.914 0.579 1.000



    The values listed above are at the throat of the nozzle at the final timestep for non-conservative form (1400 in this case)

    * - The analytical solution was taken from Computational Fluid Dynamics: The Basics with Applications, John David Anderson, Table 7.5 - Page 323

    We can notice that the solution does not gain any significant improvement in precision when the number of gridpoints is increased. We can conlcude from this that the solution is independent of the number of grid points used. If further precision is required for complex applications, the grid size can be increase appropriately. Do note this increase will definitely cause an increase in simulation time for more complex simulations.





    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Dushyanth Srinivasan (45)

    Project 2 - Rankine cycle Simulator

    Objective:

      In this project, I will be writing code in MATLAB to simulate a Rankine Cycle for the given parameters. A Rankine Cycle is an ideal thermodynamic heat cycle where mechanical work is extracted from the working fluid as it passes between a heat source and heat sink. This cycle or its derivatives is used in steam engines…

    calendar

    04 Sep 2022 12:52 PM IST

    • MATLAB
    Read more

    Project 1 - Parsing NASA thermodynamic data

    Objective:

    In this project, I will be parsing a data file prepared by NASA. The contents of the data file can be used to generated thermodynamic properties such as Specific Heat at Constant Pressure 'C_p' (J/(kg.K)J/(kg.K)), Enthalpy HorQHorQ (JJ) and Entropy SS (J/(kg.mol)J/(kg.mol)) at various temperatures. The files will be parsed in MATLAB…

    calendar

    31 Aug 2022 01:07 PM IST

    • MATLAB
    Read more

    Week 5 - Genetic Algorithm

    Objective:

    In this project, I will be generating a stalagmite function in MATLAB and find the global maxima of the function using Genetic Algorithm. A stalagmite function is a function which generates Stalactites, which are named after a natural phenomenon where rocks rise up from the floor of due to accumulation of droppings of…

    calendar

    29 Aug 2022 07:55 AM IST

    • MATLAB
    Read more

    Week 4.1 - Solving second order ODEs

    Objective:

    In this project, I will be writing code in MATLAB to solve the motion of a simple pendulum. A simple pendulum motion's depends on Newton's Second Law. The equation which governs the motion of a simple pendulum is (with damping) d2θdt2+bmdθdt+gLsinθ=0d2θdt2+bmdθdt+gLsinθ=0 Where, θθ is the angular displacement…

    calendar

    23 Aug 2022 08:06 AM IST

    • MATLAB
    Read more

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

    Related Courses

    coursecardcoursetype

    Accelerated Career Program in Embedded Systems (On-Campus) - Powered by NASSCOM

    Recently launched

    0 Hours of Content

    coursecard

    5G Protocol and Testing

    Recently launched

    4 Hours of Content

    coursecard

    Automotive Cybersecurity

    Recently launched

    9 Hours of Content

    coursecardcoursetype

    Pre-Graduate Program in Bioengineering and Medical Devices

    Recently launched

    90 Hours of Content

    coursecardcoursetype

    Pre-Graduate Program in 5G Design and Development

    Recently launched

    49 Hours of Content

    Schedule a counselling session

    Please enter your name
    Please enter a valid email
    Please enter a valid number

                Do You Want To Showcase Your Technical Skills?
                Sign-Up for our projects.
